Magnetic Stirrer

Magnetic Stirrer
Magnetic Stirrer
Product Code : 37
Brand Name : Au Systems Pvt. Ltd.
Product Description

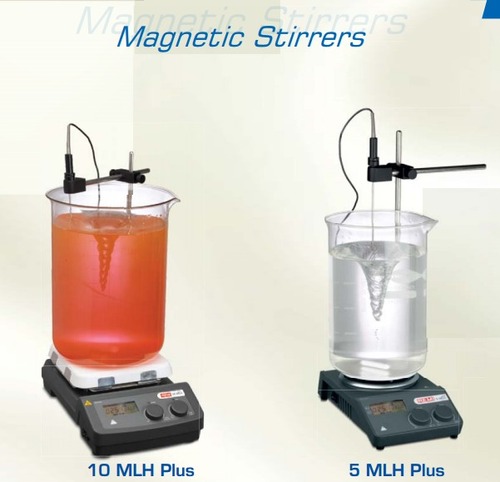

With an objective to accomplish varied needs of our clients, we are instrumental in providing the premium quality Magnetic Stirrer. This stirrer is used for several applications like laboratory research, paper making, brewing etc. The offered stirrer is manufactured under the stern direction of our vendor’s skilled professionals by utilizing quality-tested components with the help of cutting-edge technology. Additionally, this Magnetic Stirrer can be purchased by our customer in several technical specifications at the most reasonable prices.

Features:



  • Sturdy design
  • High durability
  • Simple to operate
  • Trouble-free functionality

Performance

  • Speeds range 100 - 1500 rpm
  • Porcelain Enamel Hot Plate model for temperatures up to 340°C
  • Ceramic Hot Plate model temperatures up to 550°C
  • Easy-to-read backlit LCD for display of set & actual parameters
  • Monitoring of set & actual temperature / speed
  • High accuracy of temperature control with embedded dual sensors

Leading Technology

  • Advanced Stirrers with microprocessor technology
  • Constant speed even with change of load / Voltage
  • Maintenance free brushless motor
  • Porcelain Enamel / Ceramic Top Plates
  • Scratch proof & excellent chemical resistance

 Supply 220/240 Volts, 50 Hz

Technical Data

Model

5 ML plus

5 MLH plus

10 ML plus

10 MLH plus

Power (W)

50

550

50

1050

Max. stirring quantity (Water)(Liters)

5

5

10

10

Stirring Paddle (PTFE coated)

Q-19A (9 x 35mm)

Q-19A (9 x 35mm)

Q-20A (13 x 50mm)

Q-20A (13 x 50mm)

Motor rating input (W)

18

18

18

18

Motor rating output (W)

10

10

10

10

Speed range (rpm)

100-1500

100-1500

100-1500

100-1500

Speed / Temperature display

LCD

LCD

LCD

LCD

Speed display resolution (rpm)

1

1

1

1

Top Plate Material

Porcelain enamel

Porcelain enamel

Glass Ceramic

Glass Ceramic

Dimension of  Top Plate (mm)

135

135

184 x 184

184 x 184

Heating power (W)

-

500

-

1000

Temperature Range

-

Up to 340°C

-

Up to 550°C

Control accuracy of heating temperature

-

 1°C

-

 1°C

Residual Heating Warning Alarm

-

Above 50°C

-

Above 50°C

Control accuracy of heating temperature with PT-1000

-

0.2°C

-

0.2°C

External Temperature sensor

-

PT-1000

-

PT-1000

Dimensions (WxDxH) (mm)

280x160x85

280x16x85

360x215x112

360x215x112

Weight (kg)

2.8

2.8

5.3

5.3

Protection class acc. to DIN EN60529

IP 42

IP 42

IP 21

IP 21

Minimum Order Qty : 1 No.
